Real-time Collaboration system : Syncbiz

Real-time Collaboration system : Syncbiz

   Syncbiz is a real-time collaboration system, which includes Application sharing module, Text chatting module, Video/Audio   conferencing module, Shared virtual directory module, Multiuser White board module and Realtime Agenda Mgr(Scheduler) module. One session permits 10 concurrent users and all users share each modules. And One syncbiz local server has a capacity to sustain 50   concurrent sessions under main server which controls 50-capacity local server. However, users within same session sharing one   applications and each of them can manipulate and edit their document or application. With this useful collaboration system, people   who are far away can co-work in real-time by watching and talking with others and manipulate something.

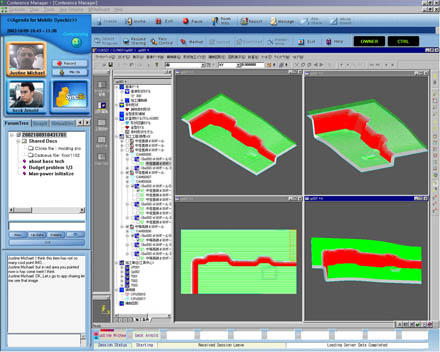

nSyncbiz sharing CLICKS2.0 btw Japan and Korea

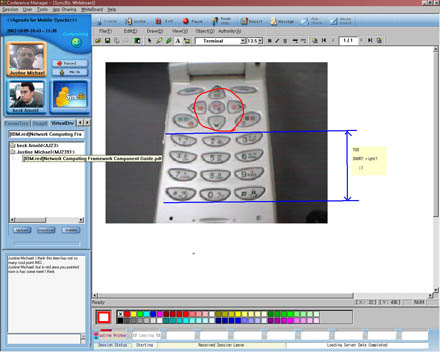

Sharing some products image. then noting it with whiteboard

What I've done : App' Sharing

  : The application sharing in syncbiz has three method.

  (1) Image based sharing :When master select an application that he or she want to share, initial image of the application send to other users within same session. If someone who have a control modify or edit in the application, the optimized-changed area cropped then send to others.

(2) Command based sharing : With hooking the windows command messages, Synbiz sends it to server, then server broadcasts to other users syncbiz. but in this case, every user must have same shared window application.

(3) Mixed version : Based on image sharing method, some tasks within window common procedure are fulfilled by command based sharing. It is useful to narrow band environment. Syncbiz uses (1) and (2) selectively in certain environment.

What I've done : Overall UI

  : Syncbiz has many modules and each module has varioius functions and commands, so the initial aim of UI of Syncbiz was 'more convinient and easier to use' while the quality of UI had to keep XP-level GUI for every platform( including windows98,2000,linux ), so I designed all of the UI from tiny control to overall dialogues.

What I've done : Agenda Mgr

  : Agenda manager is also called "Forum tree". It's role is managing overall agenda and documents used in certain conference in Syncbiz. Data on this module is formed by tree structure with DB server.

So users in same session(conference)are sharing same tree data structure in real time by Agenda Mgr's synchronizing process. After the session is over, Agenda Mgr will arrange this data and make the report.

What I've done : Syncbiz Middleware

  : Syncbiz middleware basically follow common TCP-IP. However, Client server contain's Smart switching process and a Centural server also has load balancing for each syncbiz server so, this middleware is useful from low-band to high-band. As an example, when it applied to Denso( Japanese company), it is modified by selector to available in ISDN 2B.

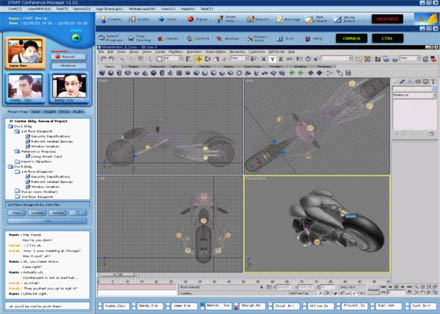

  Sharing 3D studio Max( actually the    above model was my work!! :) )

  Menu above is selecting user   whom I want to see

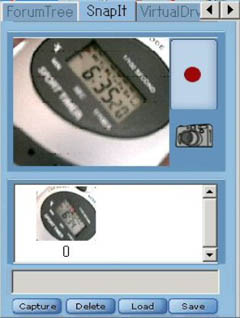

SnapIt module to gain instant mockup   image ( further using in whiteboard )

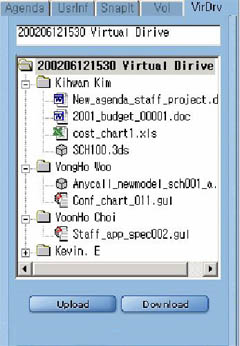

Virtual Drv and Agenda mgr.

All contents including images and UI formats are under copyright of kihwan23 2005, kihwan23 is kihwan,KAY,kim's nick or trademark :)
